Stainless Steel Johnson Screen Filter Tube

3. When a water well screen is required with features such as backwashing, safety, and reliability when in use as it has ladder welded wire screens.

• Petroleum industry. Oil filtration.
• Water treatment industry. Desalination of seawater, treatment of industrial water, and domestic water. Water softening treatment.
• Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol, and other products filtering.
• Hydro-geological exploration.
• Drilling construction.
• Geothermal development.
• Catalytic reformer.

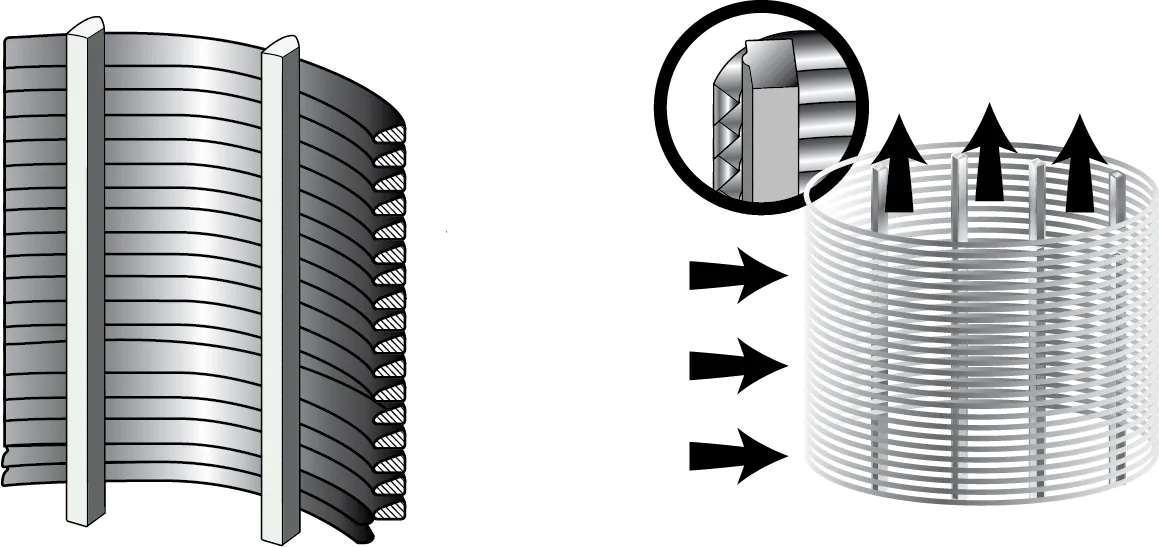

Wedge Wire Screen TubeA wedge wire screen tube is also called a Johnson Slotted Screen filter. It is made of wedge wire, which is the most popular industry filter type because of its outstanding chemical stability and corrosion resistance. The wedge wire screen filter tube is composed of a working profile and a support profile.

The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire. The support wire can be a flat bar, triangle bar, round bar, and trapezoid bar.

There are two types of wedge wire screen tubes seen from the surface. One is the normal type, which has continuous and regular angles on the edge. It is economical, which suits the applications where the accuracy is not very strict.

The other type is the perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additionally, the perfect round type can be used in the most precise machines and complete the arduous filtering task. Advantages of Wedge Wire Filter TubesAccurate filtering performance.High efficiency. More filter types can be chosen with a range of diameters.

Sizes can be customized. Corrosion resistance.Rust resistance.Long service life and durability.Industry filtration and screening best filters.

Filter Direction

According to the position and direction of surface profiles and support profiles, the wedge wire screen filter tube can be divided into four types. Radial internal type. The filtering principle flows in to out. And the support profile is radial. Radial external type. The filtering principle is flowing out to in. It is the standard type. The support profile is also radial. Axial internal type. The filtering principle flows in to out. And the support profile is axial. Axial external type. The filtering principle is flowing out to in. And the support profile is axial.
